电动缸厂家

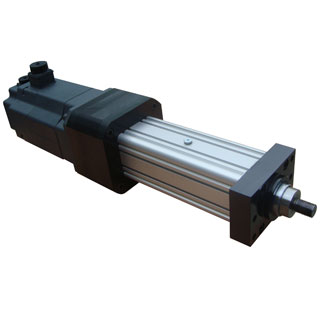

SDG50系列电动缸/常规系列

小型通用型,适用于0-3KN负载,长度不大于500mm; Small general-purpose type, suitable for 0-3KN load, the length is not more than 500mm;

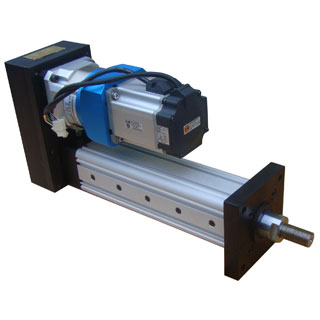

SDG63系列电动缸/中等规格

通用型,适用于2-10KN负载,长度不大于1200mm;Universal type, suitable for 2-10KN load, not more than 1200mm;

SDG80系列电动缸/增强型

中等负载,适用于10-20KN负载,长度0-1200mm内可定制; Medium load, suitable for 10-20KN load, the length 0-1200mm can be customized;

SDG100系列电动缸/增强型补充

中等负载,适用于10-25KN负载,最长行程1500mm,速度最高2000mm/s; Medium load, suitable for 10-25KN load, the max length 1500mm, the maximum speed 2000mm/s;

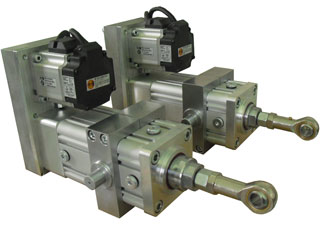

高防护等级电缸/防水防爆定制

适于防护等级要求高的环境,例如溅水、医疗、防爆等; Suitable for high environmental protection requirements, such as water, medical, explosion-proof etc;

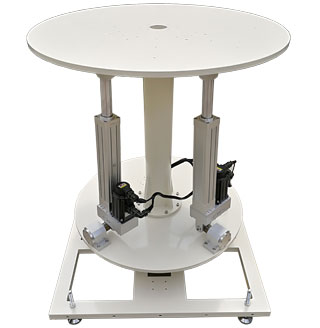

三自由度运动平台/横摇、纵倾、升降

简单仿真运动,负载高于300Kg时,需要增加防扭臂,角度不超过30°; In simple simulation motion, when the load is higher than 300Kg, the twist arm needs to be increased, and the angle is not more than 30 degrees;

三自由度运动平台/横摇、纵倾、偏航

常规三自由度运动平台改良,两自由度+旋转轴,XY复合角度可达45°,结构稳定,偏航轴可实现360°多圈; The conventional three degree of freedom motion platform is improved,;

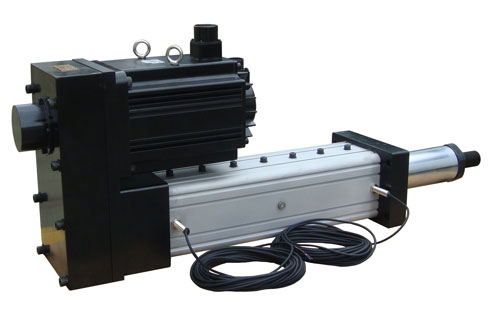

SDG125系列电动缸/重载型

高负载,适用于20-50KN负载,行程较长且可任意定制,速度最高可达到2000mm/s; High load, suitable for 20-50KN load, long travel and can be customized, the maximum speed can reach 2000mm/s;

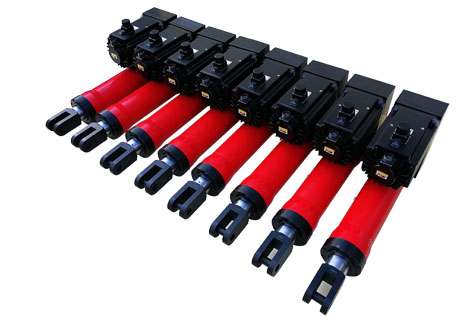

SDG140系列电动缸/重载型

重型负载,适用于20-200KN负载,行程较长、速度较快,圆形缸筒,材料:钢; Heavy load, suitable for 20-200KN load, longer travel, faster speed, circular cylinder, material: steel;

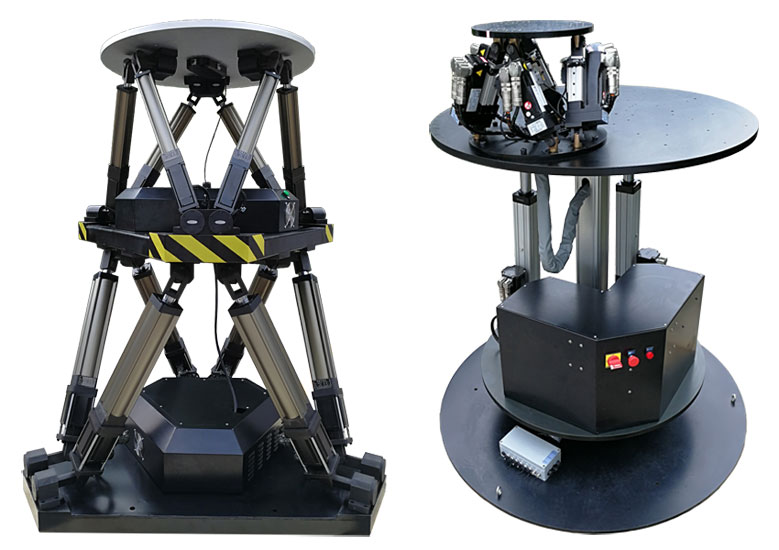

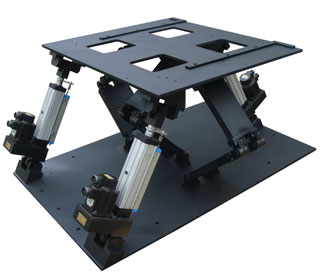

六自由度平台/仿真测试/稳定平台

可实现横摇、纵倾、偏航三个角度姿态及横移、前移、升降三个位移,主动控制平台,或稳定平台,多用于仿真模拟测试、姿态复现; It can achieve three displacement of three angles: roll, pitch and yaw. The active control platform or stable platform is mostly used for simulation test and posture reappearance

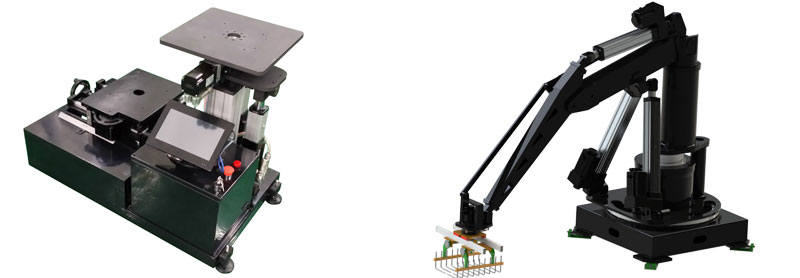

其他非标结构/电动缸直线传动相关

与电动缸相关的直线运动机构,直线运动组合、转台机构、机械手等; A linear motion mechanism related to an electric cylinder, a linear motion combination, a turntable mechanism, a manipulator, etc;

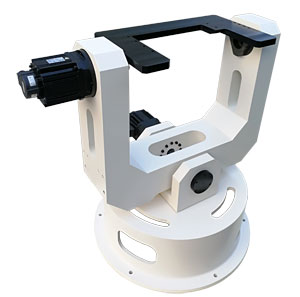

转动平台/横摇、纵倾、偏航

三轴转台,可实现多自由度旋转运动,主要特点:角度大,加速度快,精度高,用于测试光学精密仪器以及其它精密仪器设备; The three axis turntable can achieve multi degree of freedom rotation. The main characteristics are: large angle, fast acceleration and high accuracy. It is used for testing optical precision instruments and other precision instruments and equipment.

稳定平台/高精度稳态平台

集合了惯性导航、惯性传感器、数据采集及信号处理、精密机械建模仿真和设计、电机运动控制、图像处理应用等技术
